Gasungpak Co., Ltd.

Horizontal & Vertical Nozzle

Horizontal & Vertical Nozzle Vacuum & Gas Flushing Sealer


Inquire now

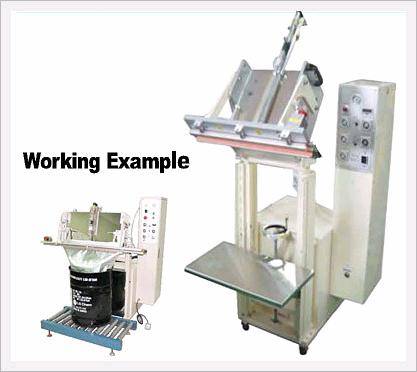

Horizontal & Vertical Nozzle Vacuum & Gas Flushing Sealer

Click to enlarge image

 Model Number GHV-600/800/1000/1200 Series

GHV-600/800/1000/1200 Series

  • High durability by Air Cylinder Driven Movement(Compressed Air is Necessary)
  • Adjustable Head Angle and Height(Manual or Auto)
  • Available for Heavy and Large Volume Product's Packing
  • High Performance Vacuum Pump Inside
  • Multi Function with Digital or Analogue Controller
    : Seal + Vacuum(3Modes) + Gas Flushing(3Modes)
  • Wide Application From Bio to Chemical Industry
  • Applicable into the FA System
  • Verified Custom design Option: Bag Gripper, Twin Nozzle, Table Lifter
  • Perfect and well considered Safety Design
  • Compatible for Clean room
Model
Power
Power
Consumption
(Kw)
Seal Size
LxW(mm)
Dimension
(WxDxH(mm)
Vacuum Pump
(â„“/Min)
GHV-600E
220V, 1Ph,
50/60Hz
2.0
600x10
750x650x1300
312
GHV-800E
2.8
800x10
940x650x1300
684
GHV-1000E
3.0
1000x10
1140x700x1300
1026
GHV-1200E
3.2
1200x10
1340x700x1300
1368

Options: GHV/GH-Series

Bag Gripper
Printer with Re-winder(P)
Nitrogen Generator(N)

Other Options:

  • Gas Flushing(G)
  • Double Heater(W)
  • Twin Nozzle(Z)

Other Vacuum Pump Types:

  • Oil-less(L)
  • Oil Rotary Vane(H)
  • Diaphragm(D)

Related Keywords: sealer
